Technical Specifications & Engineering Data
Architects, structural engineers, and commercial specifiers require exacting standards. Sail Shade World manufactures custom architectural tension membranes designed to meet strict global building codes. Below are the structural tolerances, hardware specifications, and fabric metrics utilized in our bespoke manufacturing process.
1. Textile Specifications (HDPE Architectural Fabric)
We exclusively utilize premium Gale Pacific Commercial grade fabrics. Engineered for extreme outdoor environments, this UV-stabilized High-Density Polyethylene (HDPE) monofilament provides superior biaxial stability.
| Property | Specification / Tolerance |
|---|---|
| Material Composition | 100% UV-Stabilized HDPE Monofilament & Tape |
| Fabric Weight (Nominal) | 340 gsm (Commercial Heavy) |
| UV Block / Protection | Up to 98% (UPF 50+) depending on color |
| Tensile Strength (Warp) | Approx. 700 N / 50mm |
| Tensile Strength (Weft) | Approx. 2000 N / 50mm |
| Tear Resistance (Warp/Weft) | 180 N / 190 N |
| Operating Temperature Range | -30°C to +70°C (-22°F to +158°F) |
| Flammability Rating | CSFM Title 19, NFPA 701, ASTM E84 (Class A) |
2. Seam & Thread Engineering
Seam failure is the most common issue in substandard shade sails. We eliminate this by utilizing aerospace-grade thread and overlapping lock-stitch techniques.
- Thread Material: 100% PTFE (Polytetrafluoroethylene / Teflon) thread.
- Thread Characteristics: Totally immune to UV degradation, unaffected by harsh chemicals, and will not rot or mold.
- Stitching Method: Twin needle, lock-stitch construction on all structural seams.
3. Perimeter Edge Geometry
Instead of rigid, corrosion-prone steel cables, our edges are engineered using high-tensile seatbelt-grade webbing. This allows for uniform load distribution and vibration dampening.
- Webbing Strength: Minimum breaking strain of 1,500 kg (3,300 lbs).
- Catenary Curve: Standardized at 5% inward curve (customizable in our 3D tool) to ensure perfect biaxial tension without edge sag.
- Stretch Coefficient: Manufacturing accounts for a highly controlled ~1.5% to 2% fabric elongation under dynamic load.
4. Hardware & Fixings (Marine Grade)
A tensioned membrane is only as strong as its weakest anchor point. All Sail Shade World hardware is specified for heavy commercial load tolerances in corrosive (coastal) environments.
| Component | Specification |
|---|---|
| Corner Rings | 8mm thick Marine Grade 316 Stainless Steel Delta/D-Rings, fully welded. |
| Turnbuckles (Rigging Screws) | 316 Stainless Steel, M8 or M10 sizing, open body with lock nuts for high-tension torquing. |
| D-Shackles | 316 Stainless Steel, minimum 8mm pin diameter. |
| Corrosion Resistance | Maximum resistance against pitting and crevice corrosion in chloride-rich environments. |
Need DWG / CAD Files for a Project?

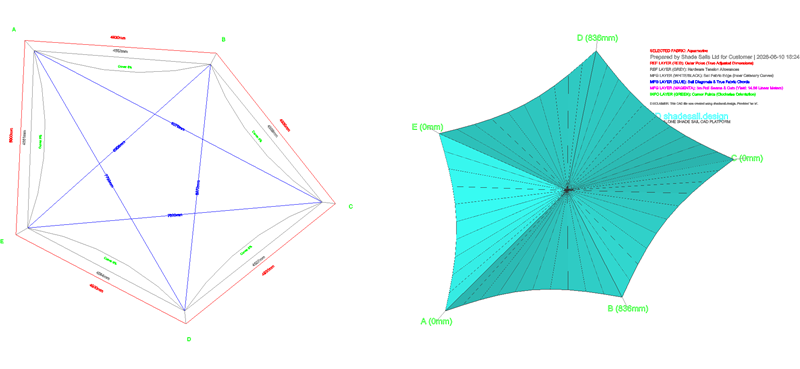

Our 3D Custom Estimator allows specifiers to input architectural dimensions and instantly output hardware deductions, tensioning angles, and production-ready layout data.
